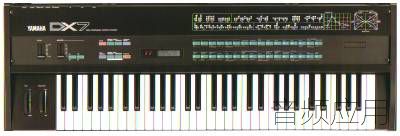

Yamaha - DX7 ºÏ³ÉÆ÷

vstforx

2005-5-26 00:54:00

ºÏ³ÉÆ÷
HerrMueller µÄ DX7 ÊÇÒ»¸öÃâ·ÑµÄ»ùÓÚ Java µÄÓÃÓÚ Yamaha Á÷ÐÐµÄ DX7 ºÏ³ÉÆ÷µÄ±à¼­Æ÷ÒÔ¼°¼æÈݵÄÈí¼þºÏ³ÉÆ÷¡£


¹¦ÄÜ£º
·½±ãµÄÉùÒôÉèÖùÜÀíÆ÷
ÉùÒô±à¼­Æ÷
²¨ÐÎÔ¤ÀÀ
¼´Ê±Êý¾Ý½»»» / ʵʱ±à¼­Ä£Ê½
ϵͳרÓÃÐÅÏ¢µ¼Èë
¶ÀÁ¢Æ½Ì¨
Õâ¸öÃâ·ÑµÄÒôÉ«±à¼­Æ÷ÏÖÒÑÔÚ vstforx Ìṩ¡£


Purchased new in 1985.

Was used for quirky sound generation, such as the bell sound in sus salvanius, but more so as a MIDI keyboard controller. Traded for a rackmount Yamaha TX-802, which was replaced by a Yamaha TX-81Z  in 1998.


Specifications:
Keyboard: 61 keys (C1-C6), Initial and Aftertouch Response
Sound Source: FM Tone Generator: 6 operators, 32 algorithms
Simultaneous Output Notes: POLY mode: 16 notes, MONO mode: 1 note
Internal Voice Memory: 32
External Voice Memory: 64 (ROM) / 32 (RAM)
Controls: Volume, Data Entry, Pitch Wheel, Modulation Wheel, EG Copy
Selectors: Store, Memory Protect (Internal,Cartridge), Operator Select, Edit/Compare, Play-Memory Select (Internal,Cartridge), Function, Operator On/Off
Voice Parameters:
Algorithm
Feed Back
LFO: Wave, Speed, Delay, PMD, AMD, Sync
Mod Sensitivity: Pitch, Amplitude
Oscillator: Mode/Sync, Frequencey Coarse/Fine, Detune
EG: Rate, Level
Keyboard Level Scaling: Break Point, Curve, Depth
Keyboard Rate Scaling
Operator: Output Level, Key Velocity Sensitivity
Pitch EG: Rate, Level
Key Transpose
Voice Name
Function Parameters:
Master Tune Adj
Poly/Mono
Pitch Bend: Range, Step
Portamento: Mode, Glissando, Time
Edit Recall
Voice Init
Battery Check
Cartridge: Save, Load
Modulation Wheel: Range, Pitch, Amplitude, EG Bias
Breath Control: Range, Pitch, Amplitude, EG Bias
After Touch: Range, Pitch, Amplitude, EG Bias
Cartridge Format
MIDI
Display: LED (Voice Number), LCD (16 characters x 2)
Connecting Terminals: Output, Phones
Control Terminals: Foot Switch (Sustain, Portamento), Foot Control (Modulation, Volume), Breath Control, MIDI (In/Out/Thu)
Dimensions: 101.8(W) x 10.2(H) x 32.9(D) cm (40" x 4" x 13")
Weight: 14.2 kg (31.2 lb)
Accessories: ROM Voice Memory Cartridge (64 voices) x 2, Sheet Music Stand
